Image Maps for Data Capture External Module

Description
Through applying a custom action tag, this module allows data entry staff or survey participants to click on regions of image, such as a body map, and capture coded data in a corresponding text input, checkbox or radio button field. The available image maps are listed in the module documentation and include various body maps, a smile scale from 1-7 with facial expressions, three representations of teeth and teeth surfaces, among others. View image map demo
Feature Type
External module (EM)
Fees
None
Eligible Projects/Project Status Dependency
Project Status at Request = Development or Production Support Track = Standard Service for Research
Request Process
Eligible Requestor: Project point person Point Person Submits Request Initiate request via `Project > Lefthand Nav Menu > External Modules link > View available modules button > Auto Record Generation > Request Activation button`
REDCap Skills
Form building. Familiar with action tags.
Installation, Configuration and Implementation

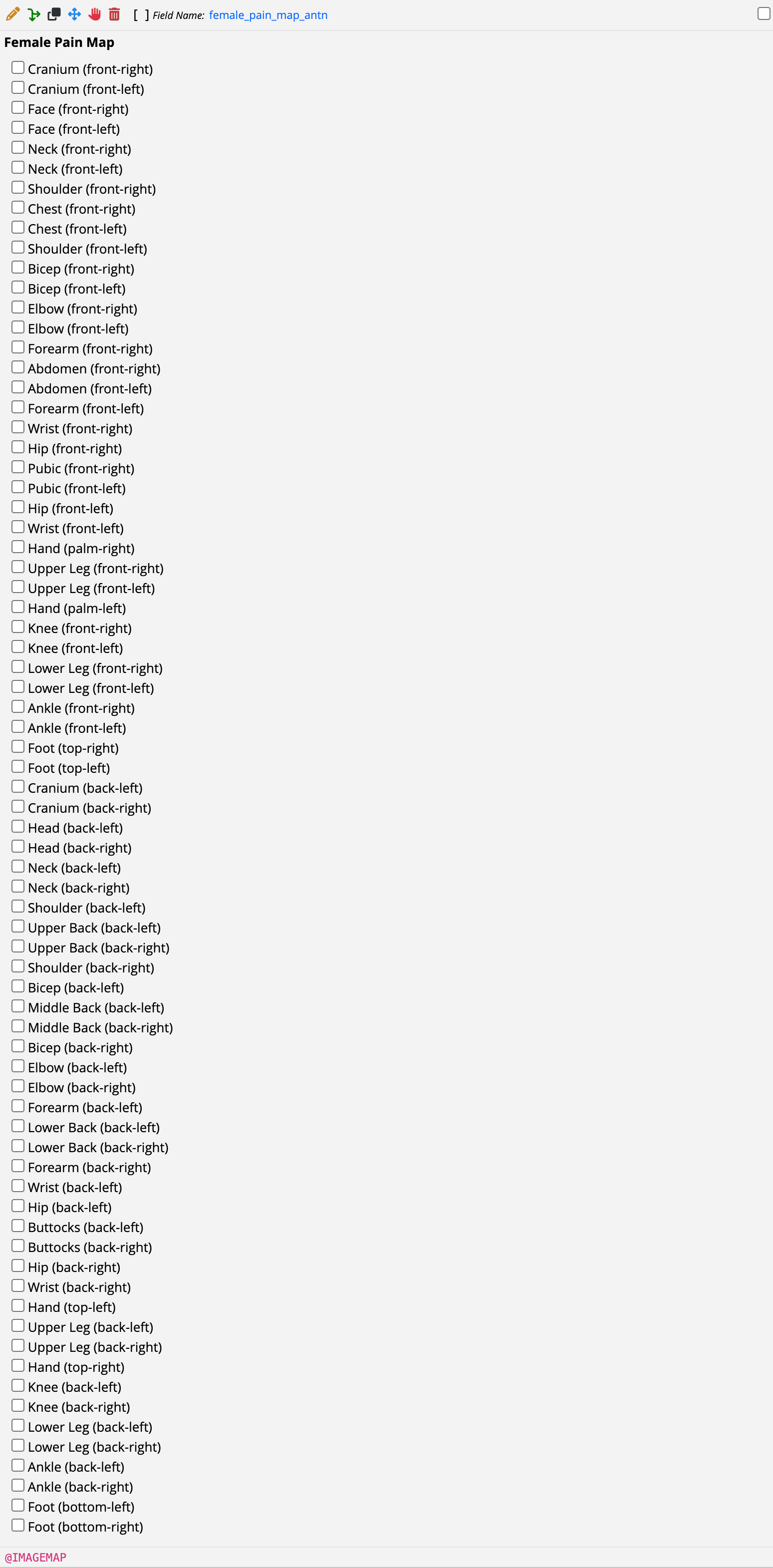

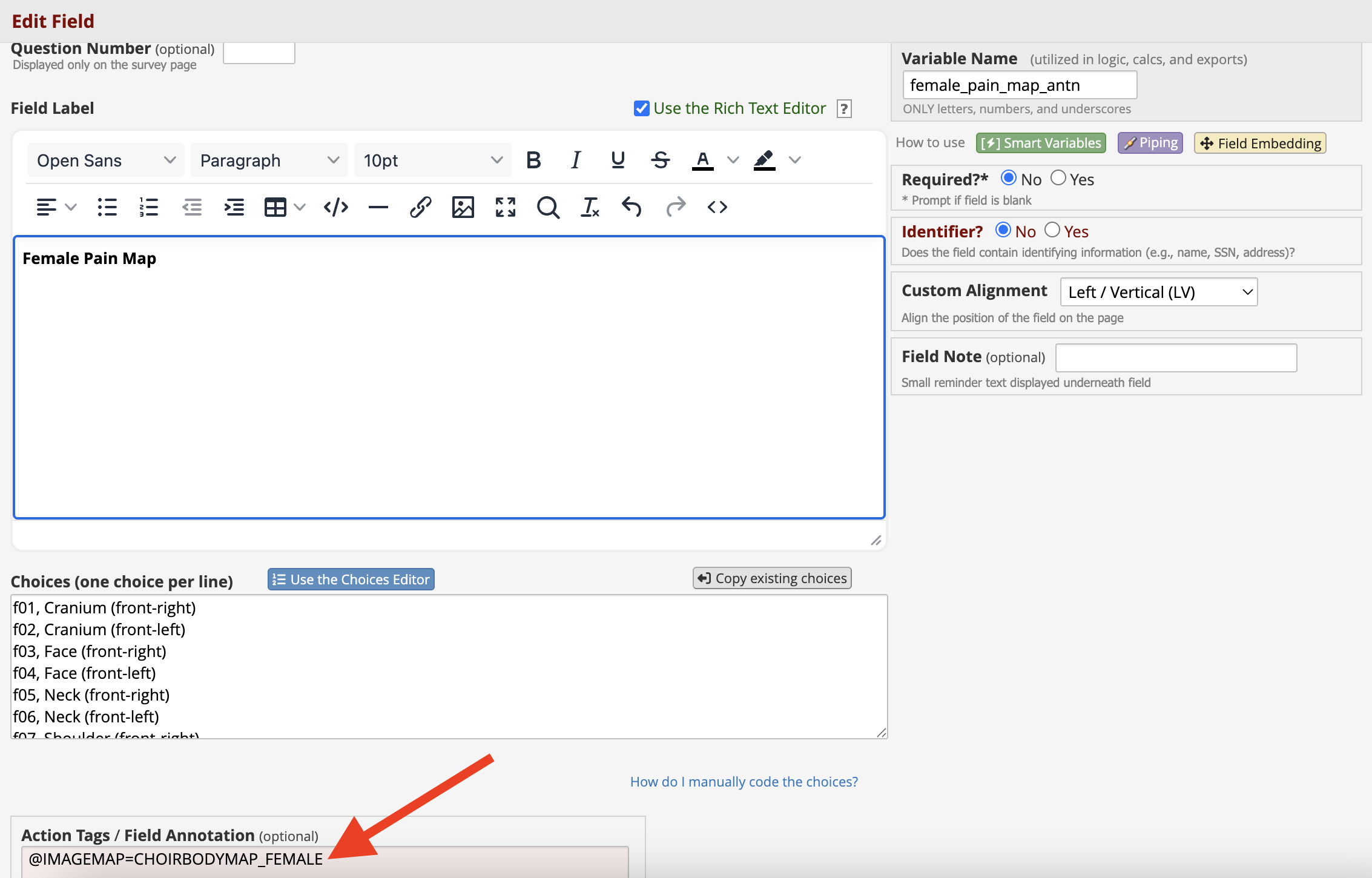

Installation REDCap Team approves requests and activates module. User Rights Users with Project Design & Setup user rights have permission to the module. Configuration Self-service Users with Project Design & Setup user rights configures field(s) on forms and/or surveys in their project to use the Image Map module. Implementation Notes Check the documentation for the information about available image maps. Apply `@IMAGEMAP` action tag and the name of one of the pre-defined image maps to a text field, radio button or checkbox field. e.g. `@IMAGEMAP=CHOIRBODYMAP_FEMALE.` For radio buttons and checkboxes, configure options to correspond to the keys and values listed for the specific image map in the module documentation. The image map is not viewable in the Online Designer view of the field. To validate the image map field configuration, test the form or survey the image map field was added to. Field Configuration Examples Checkbox field for female body pain map Configuration of checkbox field for female boxy pain map
